Workshop

Batch-Based Clickstream Analytics Platform

Architecture

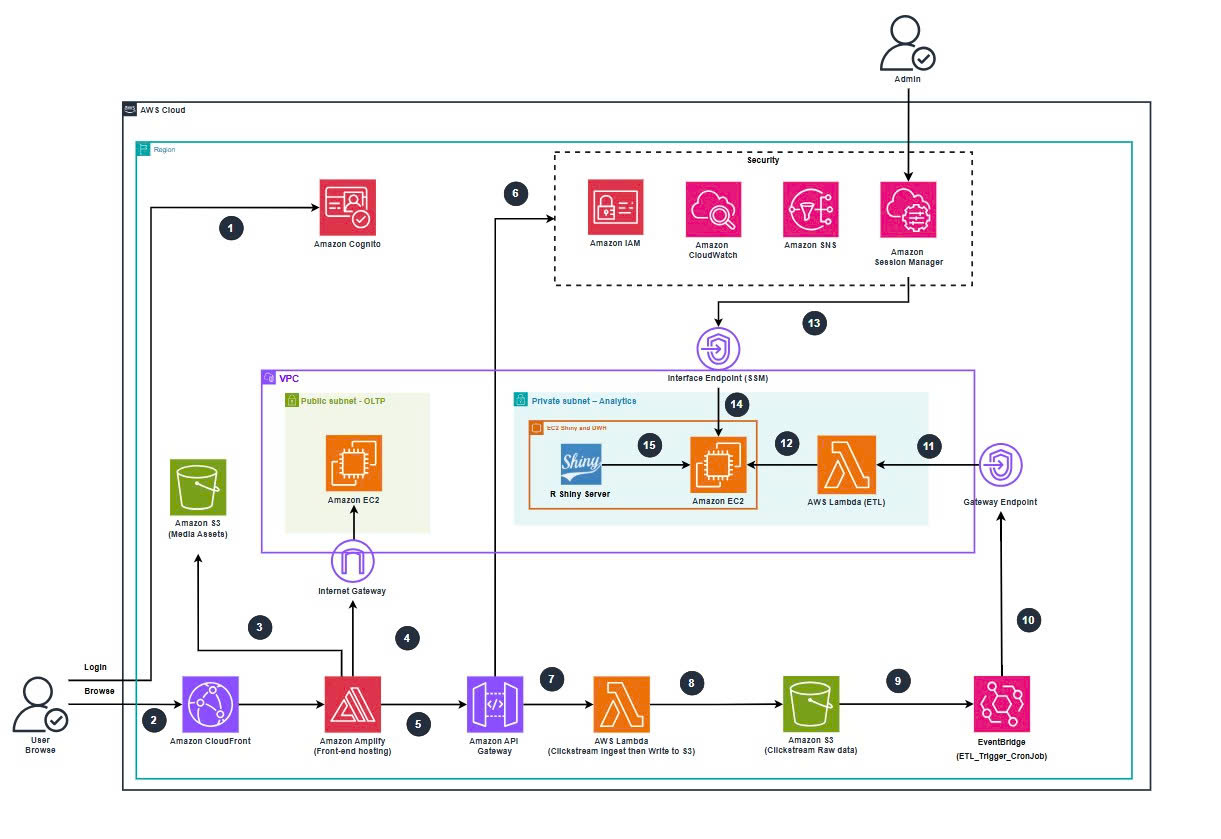

Figure: Architecture Batch-base Clickstream Analytics Platform.

Overview

This workshop implements a Batch-Based Clickstream Analytics Platform for an e-commerce website selling computer products.

The system collects clickstream events from the frontend, stores raw JSON data in Amazon S3, processes events via scheduled ETL (AWS Lambda + EventBridge), and loads analytical data into a dedicated PostgreSQL Data Warehouse on EC2 inside a private subnet.

Analytics dashboards are built using R Shiny, running on the same EC2 instance as the Data Warehouse, and accessed via AWS Systems Manager Session Manager.

The platform is engineered with:

  • Clear separation between OLTP vs Analytics workloads
  • Private-only analytical backend (no public DW access)
  • Cost-efficient, scalable AWS serverless components
  • Zero-SSH admin access via SSM Session Manager into the private DW / Shiny EC2
  • You can run the Shiny app locally at localhost:3838

Key Architecture Components

Frontend & OLTP Domain

  • Next.js app: ClickSteam.NextJS hosted on AWS Amplify Hosting
  • Amazon CloudFront as global CDN
  • Amazon Cognito User Pool for authentication
  • OLTP PostgreSQL on EC2: SBW_EC2_WebDB (public subnet)
    • DB: clickstream_web (schema public)
    • Port: 5432

Ingestion & Data Lake Domain

  • Amazon API Gateway (HTTP API): clickstream-http-api
    • Route: POST /clickstream
  • Lambda Ingest: clickstream-lambda-ingest
    • Validates payload, enriches metadata, writes JSON files to S3
  • S3 Raw Clickstream Bucket: clickstream-s3-ingest
    • Prefix: events/YYYY/MM/DD/
    • File pattern: event-<uuid>.json
    • RAW_BUCKET = clickstream-s3-ingest

Analytics & Data Warehouse Domain

  • Private EC2 for DWH + Shiny: SBW_EC2_ShinyDWH (private subnet 10.0.128.0/20)

    • DWH DB: clickstream_dw
    • Main table: clickstream_events with fields:
      • event_id, event_timestamp, event_name
      • user_id, user_login_state, identity_source, client_id, session_id, is_first_visit
      • context_product_id, context_product_name, context_product_category, context_product_brand
      • context_product_price, context_product_discount_price, context_product_url_path
    • R Shiny Server on port 3838, web path /sbw_dashboard

  • Lambda ETL: SBW_Lamda_ETL (VPC-enabled)

    • Reads raw JSON from clickstream-s3-ingest
    • Transforms into SQL-ready rows
    • Inserts into clickstream_dw.public.clickstream_events

  • EventBridge Rule: SBW_ETL_HOURLY_RULE

    • Schedule: rate(1 hour)

  • VPC & Networking

    • VPC CIDR: 10.0.0.0/16
    • Public subnet: 10.0.0.0/20 → SBW_Project-subnet-public1-ap-southeast-1a (OLTP EC2)
    • Private subnet: 10.0.128.0/20 → SBW_Project-subnet-private1-ap-southeast-1a (DW, Shiny, ETL Lambda)
    • S3 Gateway VPC Endpoint for private S3 access
    • SSM Interface Endpoints (SSM, SSMMessages, EC2Messages) for Session Manager

  • Admin Access (SSM)

    • Port forwarding:
      • localPort = 3838
      • portNumber = 3838
    • Shiny URL from local: http://localhost:3838/sbw_dashboard
