Implementing Clickstream Ingestion

5.3.1 Ingestion Flow Overview

High-level data flow:

1. User interacts with the Next.js frontend (ClickSteam.NextJS) hosted on Amplify.
2. Frontend JavaScript bundles clickstream metadata (page/user/session/product) into a JSON payload.
3. Browser sends POST requests to clickstream-http-api at POST /clickstream.
4. API Gateway forwards the request to clickstream-lambda-ingest.
5. Lambda Ingest enriches _ingest metadata and writes one JSON file per event to:
   • s3://clickstream-s3-ingest/events/YYYY/MM/DD/HH/event-<uuid>.json (UTC hour partition)

Design stays stateless and append-only, suitable for downstream batch ETL and idempotent inserts.

5.3.2 S3 Bucket Design

Two buckets are relevant:

1. Asset Bucket — clickstream-s3-sbw

   • Stores website assets: product images, static files.
   • Not used for clickstream events.

2. RAW Clickstream Bucket — clickstream-s3-ingest

   • Stores only raw clickstream JSON events.
   • Partitioned by UTC hour: events/YYYY/MM/DD/HH/
   • File naming: event-<uuid>.json

Hour partitions make batch ETL easier (e.g., process previous hour or a specific day/hour prefix).

5.3.3 Lambda Ingest Design — clickstream-lambda-ingest

Responsibilities

The clickstream-lambda-ingest function:

• Parses incoming JSON payloads from API Gateway.
• Adds _ingest metadata only: receivedAt, sourceIp, userAgent, method, path, requestId, apiId, stage, traceId.
• Writes the event body as provided by the client (no server-side filling of user/session/product fields) to S3.

IAM Permissions

The execution role should allow:

• s3:PutObject on: arn:aws:s3:::clickstream-s3-ingest/events/*
• CloudWatch Logs APIs to write logs.

No read permissions are needed for this function.

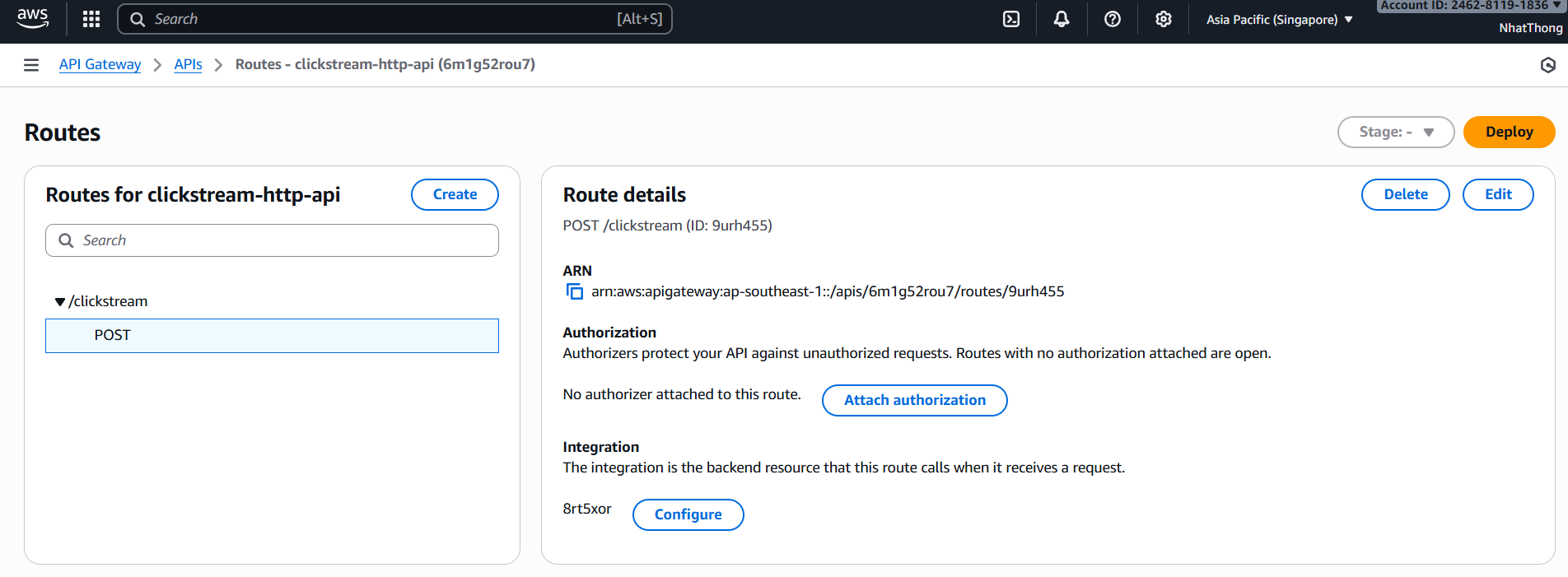

5.3.4 API Gateway HTTP API — clickstream-http-api

The HTTP API provides a public HTTPS endpoint for ingestion:

• Route:
  • POST /clickstream → Lambda clickstream-lambda-ingest

Recommended options:

• Enable CORS so the Amplify frontend can call it from its own domain.
• Enable access logs to a CloudWatch log group for debugging.
• (Optional) Attach an API key or Cognito authorizer if you want to restrict ingestion.

5.3.5 Frontend Clickstream Publisher (Logic)

Identity & idempotency

• Generates eventId per event (UUID) for idempotent inserts.
• Maintains clientId in localStorage (sticky per browser).
• Maintains sessionId in sessionStorage (30m idle timeout) and isFirstVisit.

User, page, and click metadata

• User/auth (if available): userId, userLoginState, optional identity_source.
• Page/click: pageUrl, referrer, element metadata for clicks (tag/id/role/text/dataset).

Product context

• Sent as product.{id,name,category,brand,price,discountPrice,urlPath}; ETL maps to DW context_product_* columns.

Event coverage

• Auto: page_view, global click.
• Custom/product: home_view, category_view, product_view, add_to_cart_click, remove_from_cart_click, wishlist_toggle, share_click, login_open, login_success, logout, checkout_start, checkout_complete.

Domain event wiring

• home_view: home page load (tracker component).
• category_view: category listing render (slug/params).
• product_view: product detail render (has product context).
• add_to_cart_click / remove_from_cart_click: cart add/remove handlers.
• wishlist_toggle: wishlist button handler.
• share_click: share button handler.
• login_open / login_success / logout: auth flows.
• checkout_start / checkout_complete: checkout entry and success flows.

Components & wiring

• lib/clickstreamClient.ts: identity/session handling, base builders, console logging, fire-and-forget fetch to NEXT_PUBLIC_CLICKSTREAM_ENDPOINT (required env).
• lib/clickstreamEvents.ts: domain helpers that wrap trackCustom and build product/cart/order context.
• contexts/ClickstreamProvider.tsx + app/layout.tsx: wire global provider, auto page_view, global click listener.
• Tracker components: HomeTracker.tsx, CategoryTracker.tsx, ProductViewTracker.tsx skip the auto page_view and emit domain events.
• Instrumented UI: AddToCartButton.tsx, FavoriteButton.tsx, app/(client)/cart/page.tsx emit add/remove cart, wishlist, checkout events and mark buttons with global-clickstream-ignore-click to avoid duplicate global clicks.

Runtime behavior

• Client-side only (no SSR effects).
• Logs every event to console; if endpoint missing, runs in dry-run and warns once.
• Network errors are non-blocking to the UI.

5.3.6 Field projection (frontend -> S3 -> DW)

Call pattern (one event per request):

await fetch("https://<api-id>.execute-api.ap-southeast-1.amazonaws.com/clickstream", {
  method: "POST",
  headers: { "Content-Type": "application/json" },
  body: JSON.stringify(eventPayload),
  keepalive: true,
});

ETL maps eventId -> event_id (PK with ON CONFLICT DO NOTHING), derives event_timestamp from _ingest.receivedAt > payload > S3 LastModified, and inserts into clickstream_dw.public.clickstream_events.

5.3.6 Testing & Validation

To validate ingestion:

1. Use the Amplify app UI:
   • Browse a few product pages
   • Add items to cart

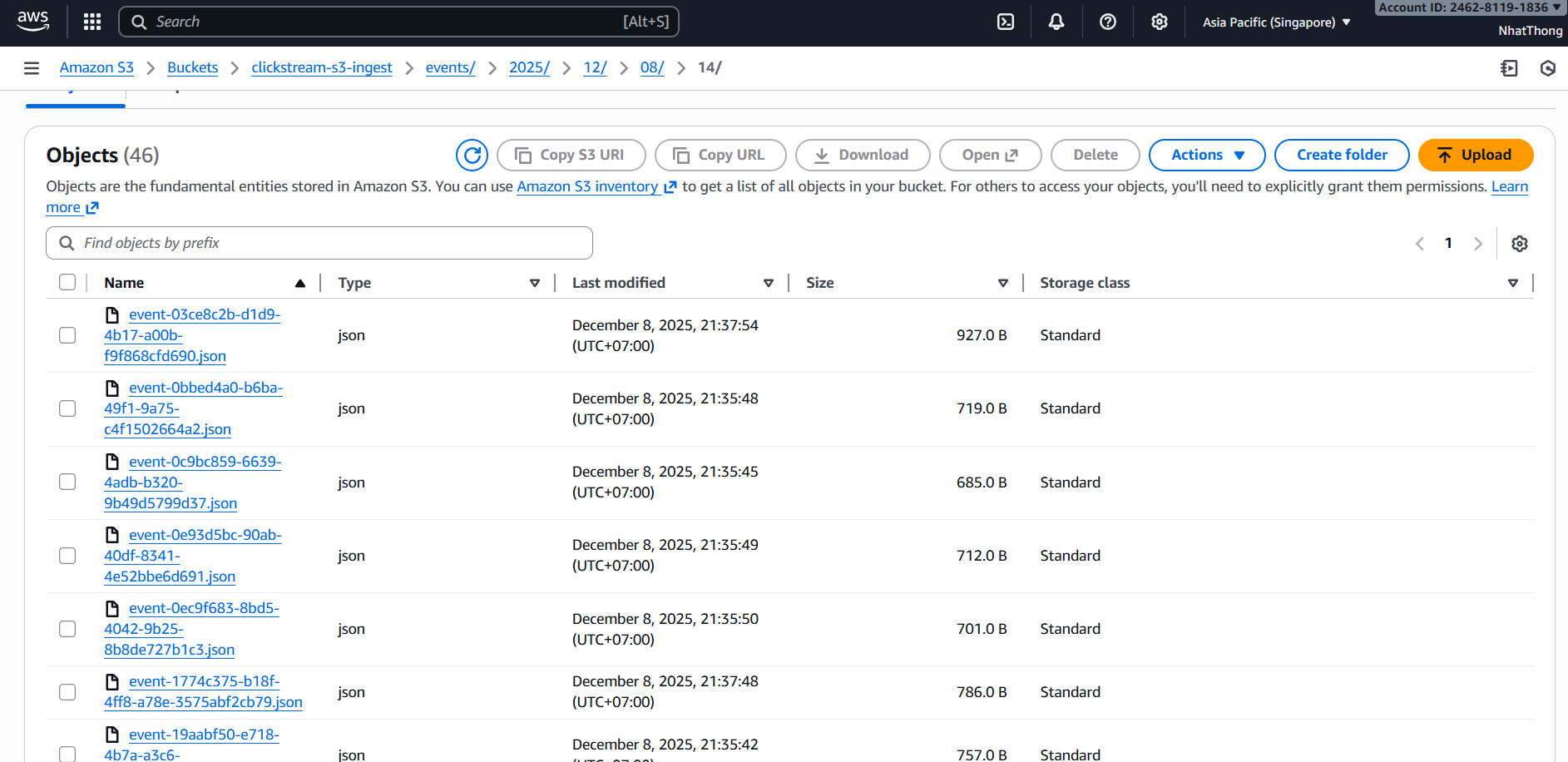

2. Check S3 bucket clickstream-s3-ingest:
   • Navigate to events/YYYY/MM/DD/HH/
   • Confirm new event-<uuid>.json files appear.
3. Inspect one JSON file:
   • Verify that _ingest metadata and product context are present.
4. Review logs:
   • API Gateway access logs
   • Lambda function logs
